Lot #2130Working

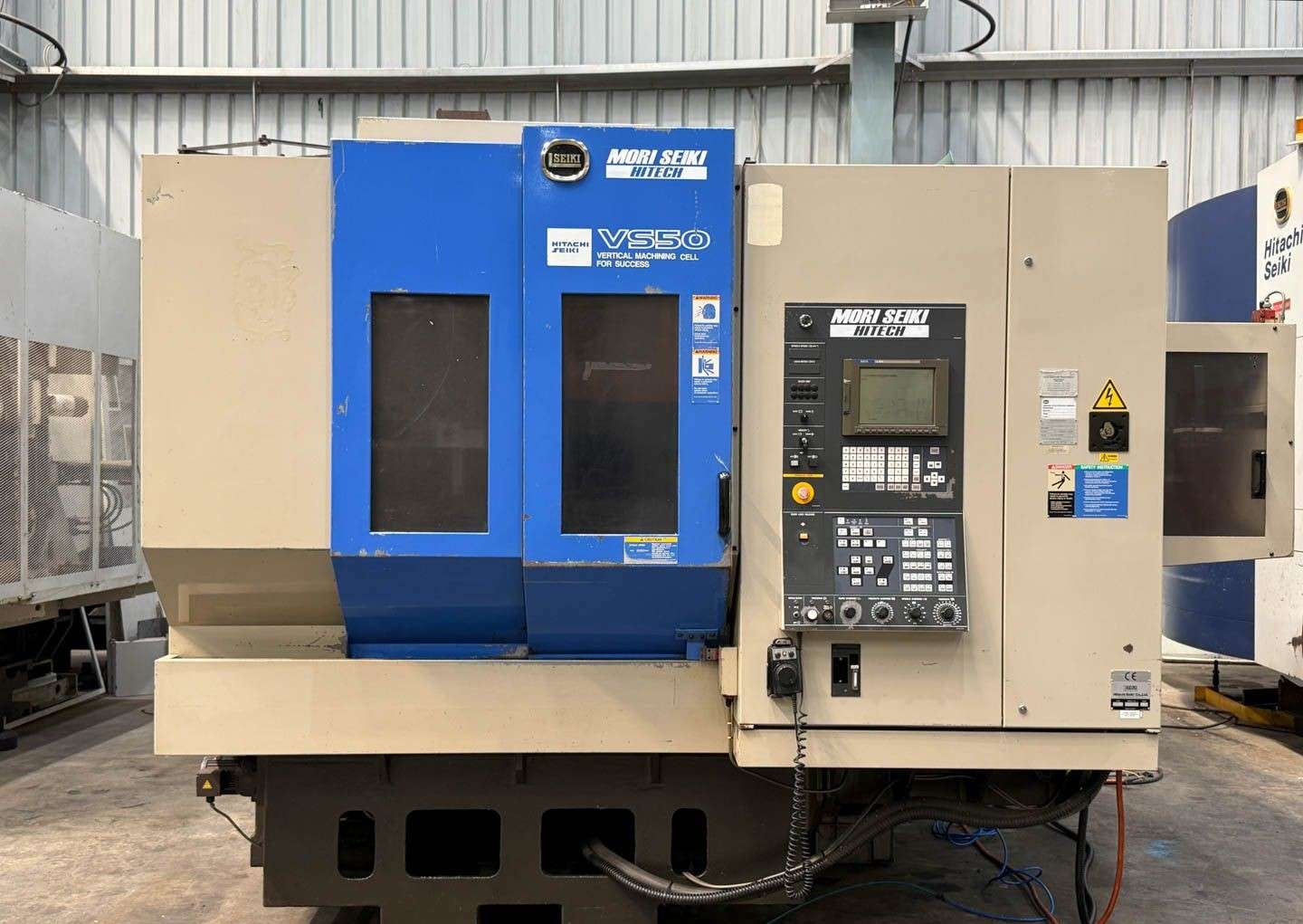

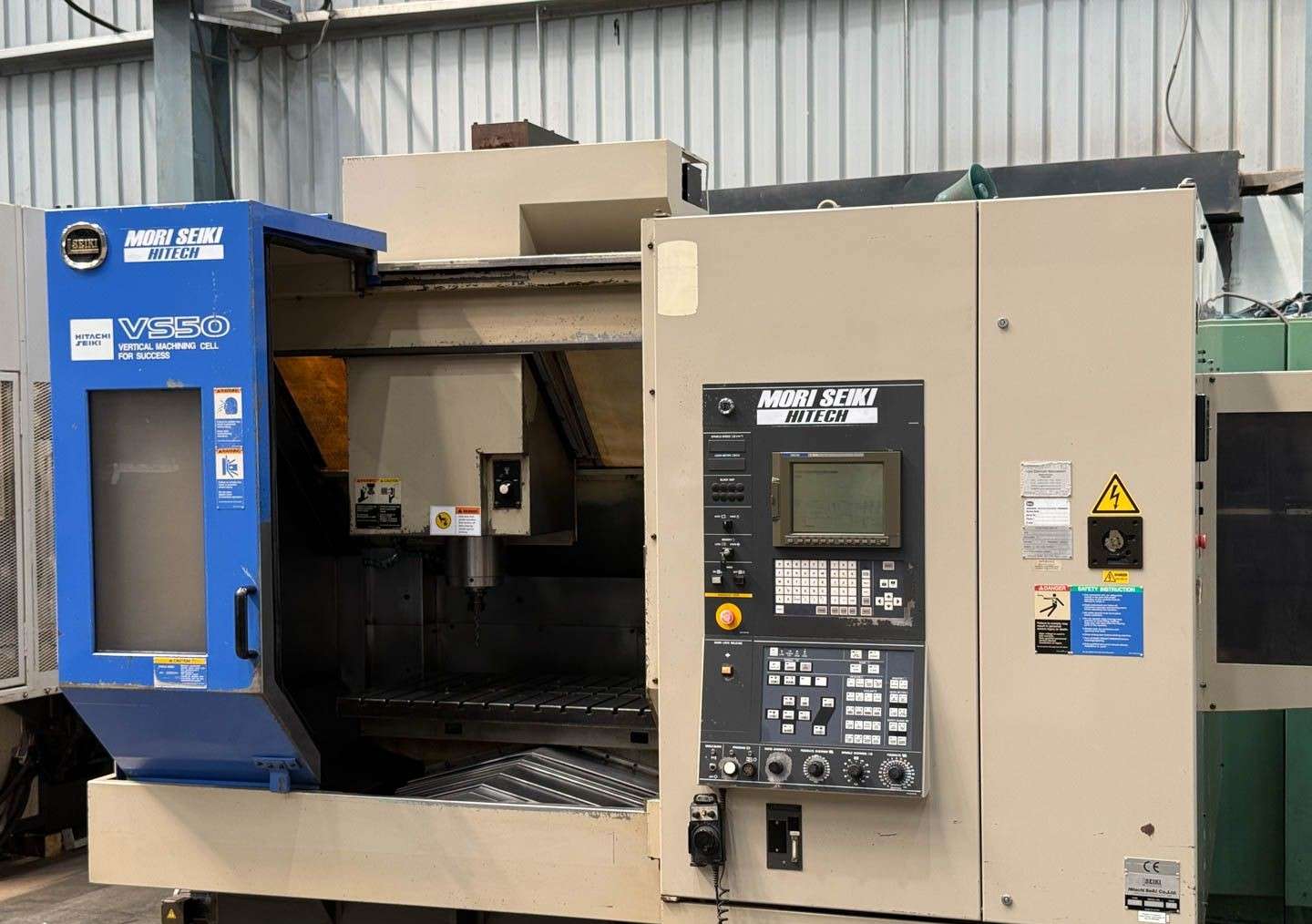

2000 Mori Seiki VS50 Vertical Machining Center - Used - Nashik, Maharashtra, India
Listed by seller-name
📷 1 / 7
Bid Type:—
Quantity:1
TaxesTo be added at payment
Seller's Terms & Conditions
Core Specifications
The 2000 Mori Seiki VS50 is a vertical machining center designed to enhance the precision and efficiency of machining operations. This model is manufactured by Mori Seiki, with a table size of 1120 x 510 mm, and XYZ travel of 1000 x 510 x 450 mm, with a maximum table load of 750 kg. It is equipped with a CAT 40 spindle, with speeds up to 12,000 RPM, driven by a 15 HP motor, and a maximum torque of 135 Nm. The machine includes a 30-tool arm-type automatic tool changer (ATC), with a maximum tool diameter of 110/180 mm, a length of 300 mm, and a weight of 8 kg. The rapid traverse rates for the X and Y axes are 40 meters/minute, while the Z axis has a rapid traverse rate of 24 meters/minute. Controlled by the Fanuc 18i-MA CNC system, it ensures reliable performance. The machine dimensions are 2900 x 2400 x 2785 mm, weighing 8.5 tons. This machine is in used condition and is ideal for high-demand manufacturing environments requiring precision machining. The machine is located in Nashik, Maharashtra, India.
Specifications:
- Machine Type:Vertical Machining Center (VMC)
- Manufacturer:Mori Seiki
- Model:VS50
- Year of Manufacture:2000
- Capacity:1000 x 510 x 450 mm

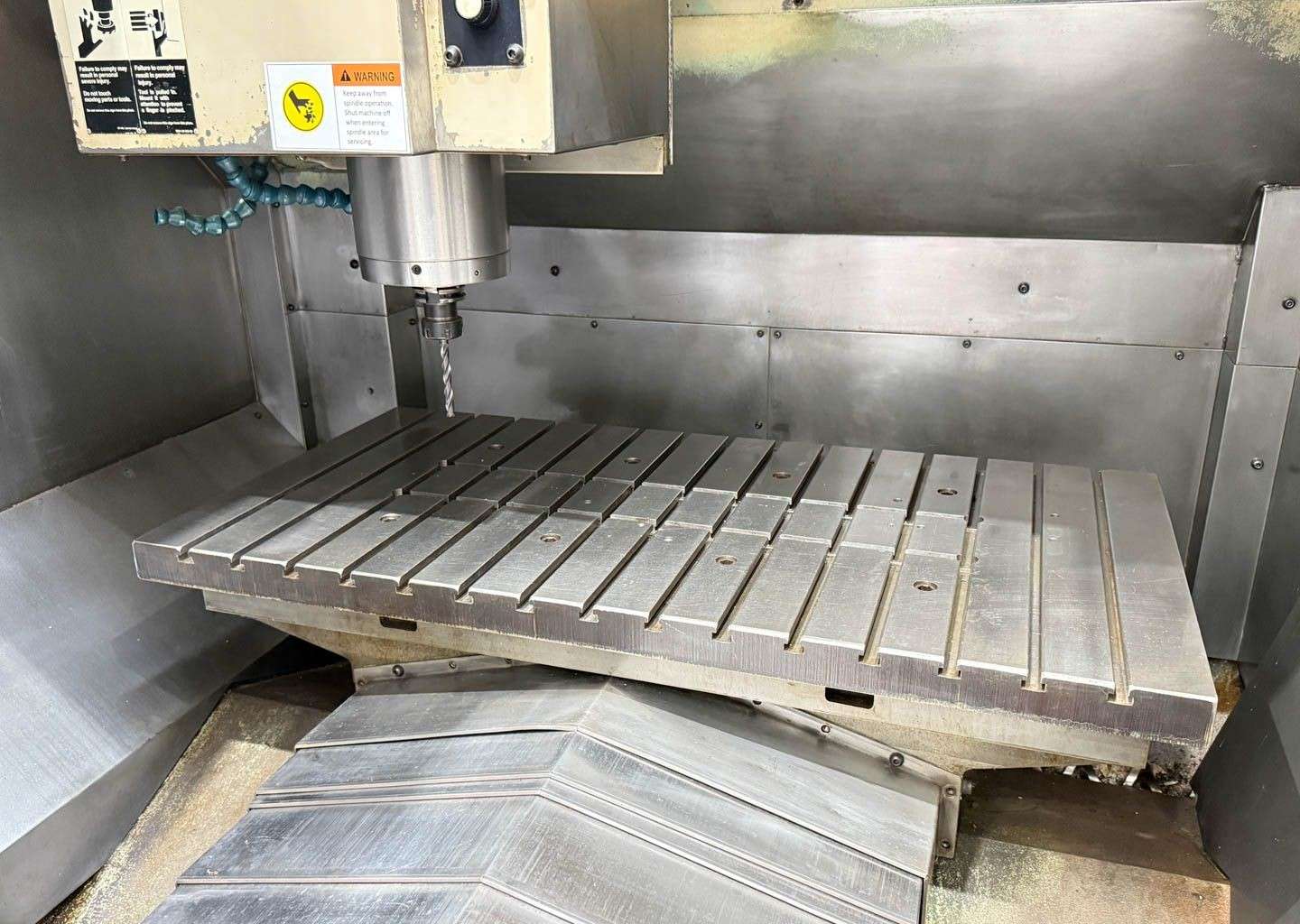

- Table Size:1120 x 510 mm
- Travel (X/Y/Z):1000 x 510 x 450 mm
- Distance from Spindle Nose to Table:150 - 600 mm
- Guideways:LM
- Maximum Table Load Capacity:750 kg
- Spindle Taper:CAT 40
- Spindle Speed:12,000 RPM
- Spindle Type:Integrated
- Spindle Motor:15 HP
- Maximum Spindle Torque:135 Nm
- Control:Fanuc 18i-MA

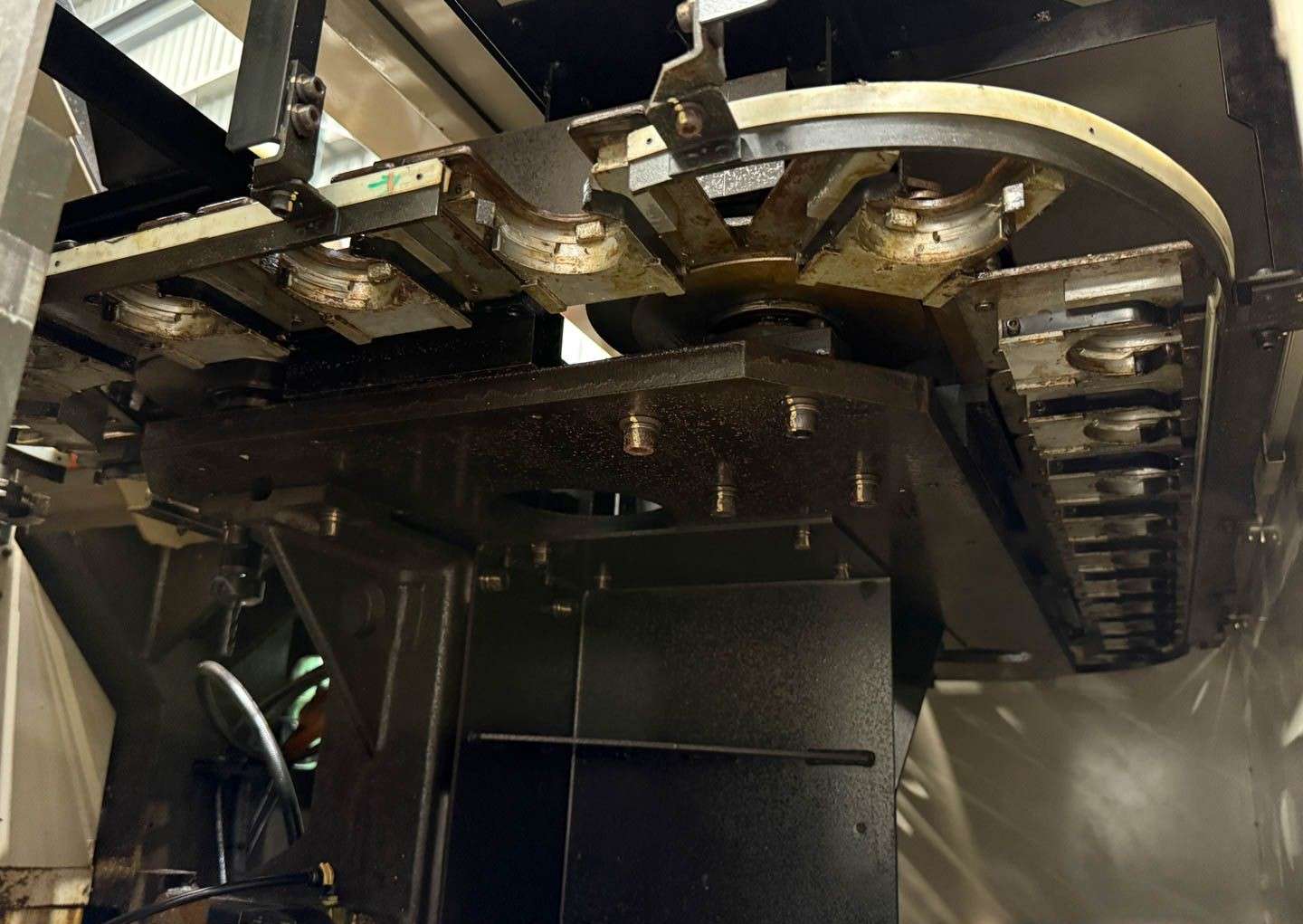

- ATC Tool Capacity:30 tools
- ATC Type:Arm
- Maximum Tool Diameter:110/180 mm
- Maximum Tool Length:300 mm
- Maximum Tool Weight:8 kg
- Rapid Traverse Rate:X&Y = 40 meters/minute; Z = 24 meters/minute
- Dimensions (L x W x H):2900 x 2400 x 2785 mm
- Weight:8.5 tons
- Condition:Used
- Location:Nashik, Maharashtra, India
- Precision milling and drilling
- Industrial manufacturing
- High-demand machining operations
Condition
Working
Category
Machining Centers
