Lot #2119Working
Takisawa NEX-108 Slant Bed CNC Lathe - Used - Taiwan
Listed by seller-name
📷 1 / 7
Bid Type:—
Quantity:1
TaxesTo be added at payment
Seller's Terms & Conditions
Core Specifications
The Takisawa NEX-108 is an inclined bed CNC lathe designed for precision turning operations. This model is manufactured by Takisawa and features a 2-axis configuration (X-axis and Z-axis), equipped with an 8-inch (203 mm) chuck and a maximum spindle speed of up to 4,000 rpm. Its maximum turning diameter is approximately 400 mm, with a turning length of about 481 mm, and it is equipped with a 12-station high-speed servo turret for enhanced rigidity. The machine is equipped with a hydraulic tailstock with a programmable spindle, typically using the Fanuc 0i-TF Plus CNC control system. The rapid traverse rates for both the X-axis and Z-axis are 24 meters/minute, and the spindle motor has a rated power of approximately 7.5-11 kW. Optional features include a chip conveyor, coolant system, tank, and manual toolbox. This machine tool is in used condition and requires verification of weight, footprint, and other specifications. It is highly suitable for industrial turning applications that require high precision and versatility.

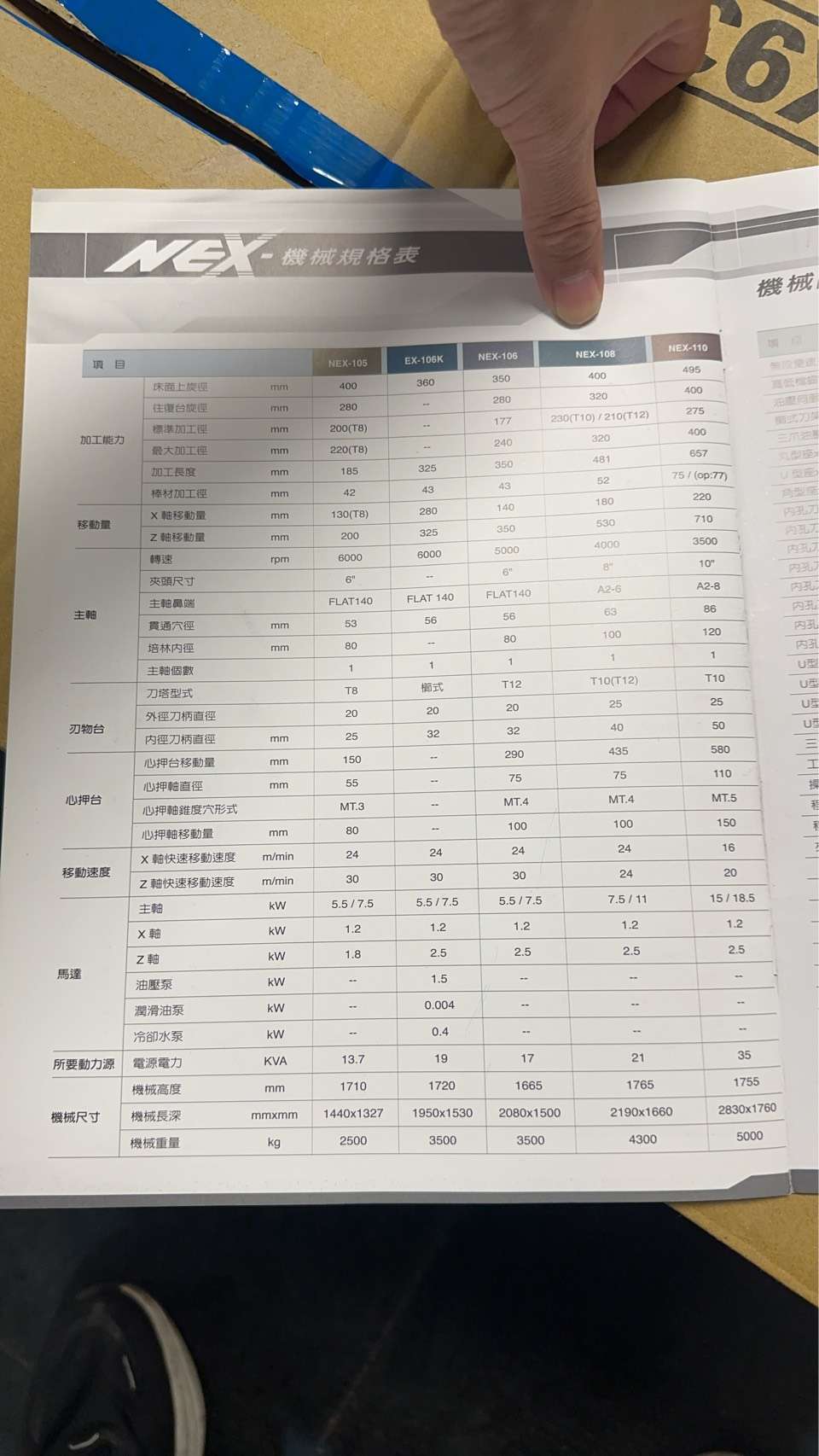

Specifications:
- Machine Type:Inclined Bed CNC Lathe
- Manufacturer:Takisawa
- Model:NEX-108
- Origin:Not specified (assumed per common usage)
- Axis Configuration:2-axis (X, Z)
- Spindle Speed:Up to 4,000 rpm
- Chuck Size:8 inches (203 mm)
- Maximum Turning Diameter:~400 mm
- Maximum Turning Length:~481 mm
- Turret:12-station high-speed servo turret
- Tailstock:Hydraulic device with programmable sleeve

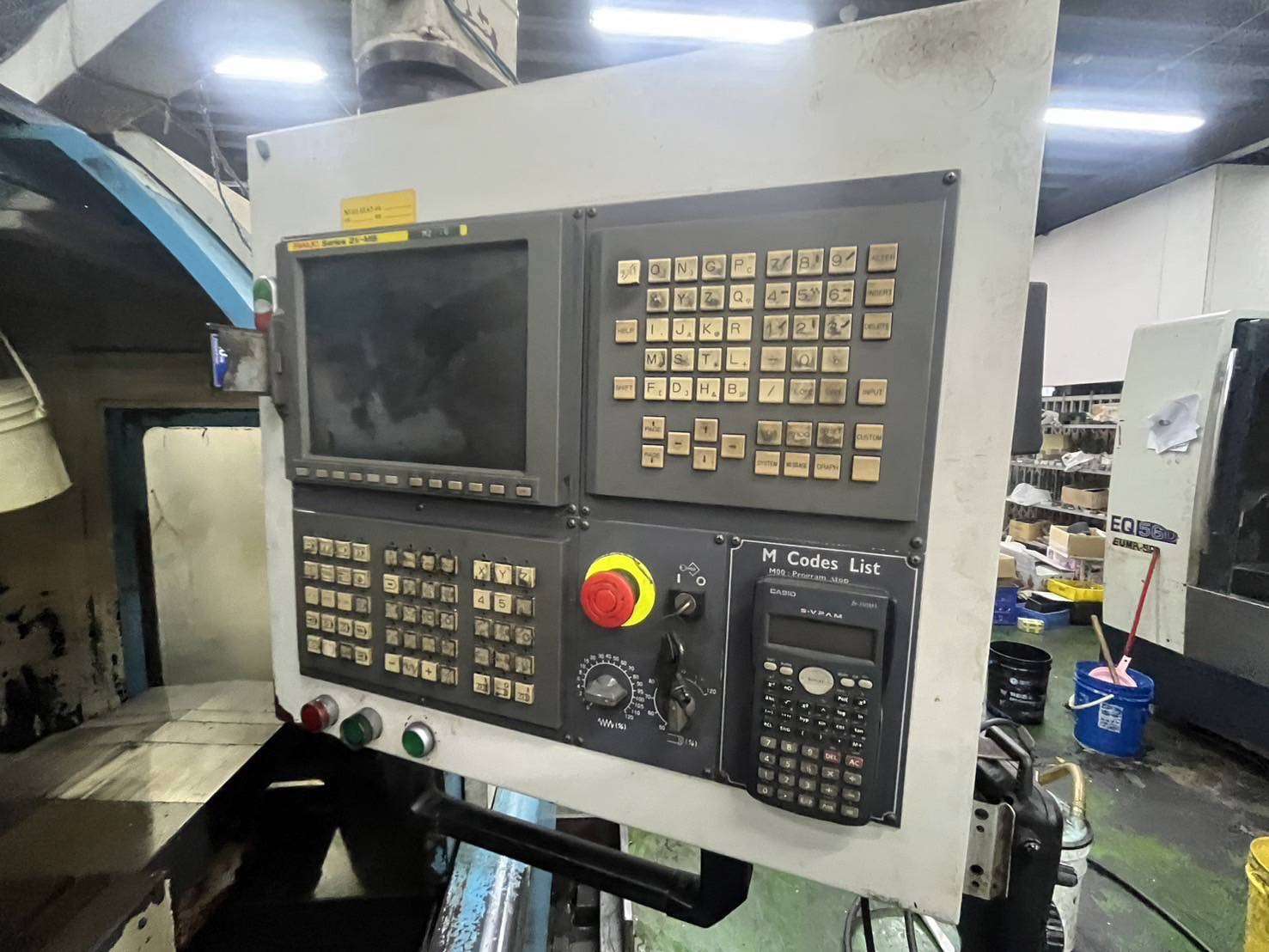

- CNC Control:Fanuc 0i-TF Plus (typical)
- Linear Guideways:Heavy-duty (optional or standard)
- Rapid Traverse:X/Z = 24 meters/minute
- Spindle Motor:Approximately 7.5-11 kW
- Optional Features:Chip conveyor, coolant system, tank, manual toolbox
- Condition: Used
- Location: Taiwan
- Precision turning and facing
- Industrial manufacturing and machining
- General machining
Condition
Working
